Scratch-building CN’s 40′ Wood End Bunker Reefers [PT:2 Doors and Corner Bracing]



IMG_1057

The car siding is now attached to the car’s core. .005 corner bracing and Grandt Line door hardware added.

After finally having some time to clean up my workbench I was able to continue with my scratch-build of CN’s 40′ Wood End Bunker Reefers.

Using a nibbler, I began by cutting the doors out of the car siding. I then glued the car siding to the body using a scale 6″ spacing jig I made to ensure a uniform 6″ of the core remained visible all along the bottom of the car. Since the car siding I used was .040″ I had to lay down a .020″ substrate into the door opening before I could install the framing. I framed the doors with 2×4″ HO scale Evergreen strip. 2×3″ HO scale strip was used for the eve above the door, 1×2″ HO scale strip was used to represent the gasket between the door and the doorframe and 2×10″ was used to represent the kicker plate below the door. The door its self was cut from .020″ Evergreen freight car siding. Grandt Line reefer hinges and door latches were used for the door hardware. I’m still waiting on a few Tichy detail parts that will complete the doors but they are about 90% finished.

IMG_1061

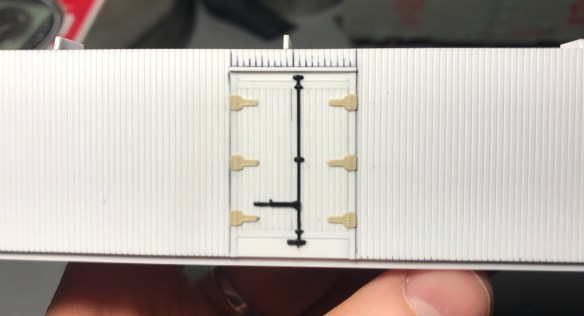

Close-up of the Grandt-Line door hardware.

After I finished with the door, I decided next I would notch out the sections of the under frame required to fit the coupler pockets. I installed Smoky Mountain coupler pockets in the cut-outs. I’m still not totally sold on this and may revert to the “scale” coupler pockets that come with Kadee #178, they aren’t as nice at the Smoky Mountain pockets but come closer to the look of the prototype. I will revisit this once I finish the under frame.

IMG_1014

A razor saw was used to cut through the frame. Much care was used to ensure I didn’t cut into the car siding. In hindsight it may have made more sense to cut these “notches” out before I installed the car siding over the core.

IMG_1015

A exacto knife with a brand new #11 blade was used to score along the bottom of the car siding. I used a screw driver to snap the cut pieces back.

Next I added the corner bracing on both the car body and the visible portion of the under frame. To accomplish this I cut scale 10″,6″ and 3″ strips from .005 styrene. For each corner brace I gently folded the strip over its self and then used my photo etch pliers to complete the fold- this way I got a nice crisp and straight fold. Using my NWSL Chopper II (absolutely essential for this task unless you want to cry) I then cut eight 10×12″ corner braces for the bottom of the body, eight 6×5″ corner braces for the visible portion of the under frame and sixteen 3×12″ corner braces for the upper portion of the car body.

IMG_0328

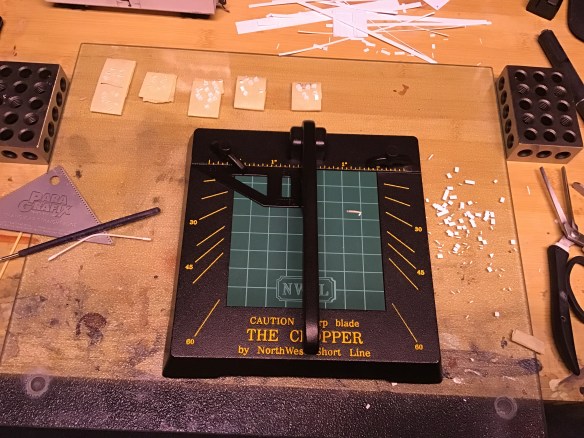

A NWSL Chopper II with the guide set to the proper length was used to ensure uniform cuts of the corner braces. The bent q-tip on the left was used to hold down the corner brace between the guide and the blade to ensure the corner brace didn’t move as it was cut.

IMG_0329

A bunch of cut out corner braces. I always make extra and use the best ones.

Next time I’ll start into the under-frame of the car, beginning with the installation of the truck bolsters. I was going to scratch build the bolsters but the Tichy ones are pretty close and already sit the car at the proper height.

After the bolsters I’ll install the Z stringers and fishbelly. The stringers will be made from strip styrene, glued together to make a Z shape. The fish belly under-frame will be cut from sheet styrene of a thickness yet to be decided.

I have some tricks up my sleeve for the brake rigging and the roof is already on my mind as well.

I’m really happy with how this build is progressing and I am picking up a lot of new skills along the way.

Until next time,

CM
